- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Easy Driverless setup; Thunderbolt 3 (40Gbps); Dual 4K 60Hz (DP + TB3) video output or single monitor 5K 30Hz; 5x USB Hub; SD 4.0 card reader, Gigabit Ethernet, headset port; 85W PD
- COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected; Included 6ft (1.8m) TB3 host cable
- FLEXIBLE THUNDERBOLT 3 PORT: Downstream TB3 port supports 3 modes of operation: 2nd monitor for dual 4K 60Hz video utilizing direct GPU performance with no software or compression, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories
- OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, Windows Layout and more

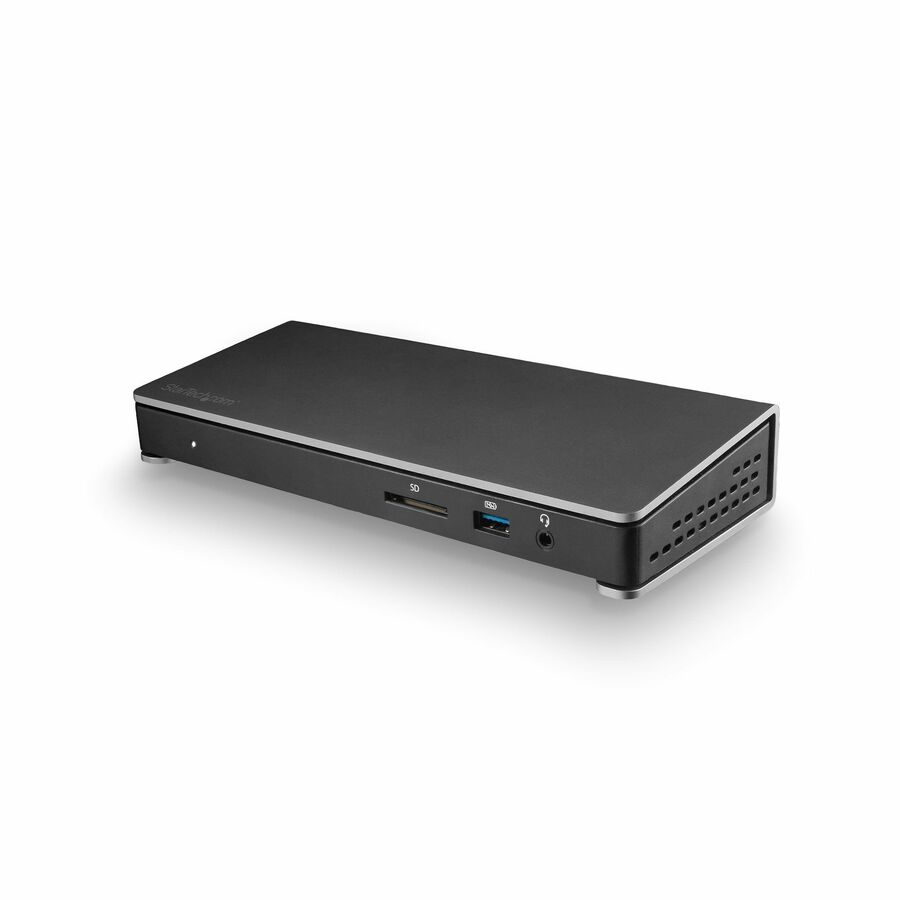

StarTech.com Dual 4K 60Hz Monitor Thunderbolt 3 Dock with 6x USB 3.0 Ports
for Notebook - Memory Card Reader - SD, MultiMediaCard (MMC), SDHC, SDXC, microSD, microSDXC, microSDHC - 85 W - Thunderbolt 3 - 2 Displays Supported - 4K - 4096 x 2160, 3840 x 2160 - 6 x USB Ports - 2 x USB 3.0 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - DisplayPort - Space Gray - Microphone - Thunderbolt - Wired - Gigabit Ethernet - Windows 8.1, Windows 8, Windows 10, Windows 11, Mac OS X 10.12 Sierra
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | TB3DOCK2DPPD |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Dual 4K 60Hz Monitor Thunderbolt 3 Dock with 6x USB 3.0 Ports |
| Marketing Information |
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader. Create a Dual-4K 60Hz Workstation This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display. Connect your laptop to:
OR
Easy Installation & Deployment Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters. Plenty of Ports Including SD Card Reader The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations. 85W Power Delivery Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools TB3DOCK2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support. |
| Packaged Quantity | 1 Each |
| Product Type | Docking Station |
Technical Information
| Connectivity Technology | Wired |
| Device Supported | Notebook |
| Memory Card Reader | Yes |
| Memory Card Supported |
|
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Supported Resolutions |
|
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports
| Host Interface | Thunderbolt 3 |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 2 |
| Number of USB 3.1 Gen 1 Type-A Ports | 4 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C (24 pines) USB 3.0 (5 Gbps), 2 x Thunderbolt™ 3 USB-C (24 pines) (40 Gbps) |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Number of DisplayPort Outputs | 1 |
| DisplayPort | Yes |
| Headphone/Microphone Combo Port | Yes |
| Microphone | Yes |
| Thunderbolt | Yes |
Software
| Operating System Supported |
|
Power Description
| Maximum Power Supply Wattage | 85 W |
Physical Characteristics
| Color Family | Gray |
| Product Color | Space Gray |
| Height | 1.34" |
| Width | 3.43" |
| Length | 8.7" |
| Weight (Approximate) | 1.08 lb |
Miscellaneous
| Package Contents |
|
| Compatibility |
|
| Brand Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | China |
Warranty
| Limited Warranty | 3 Year |
